The instrument has the Z direction measuring range of 370 μm, which is the widest in class, and achieved a resolution as high as 0.0007 μm over the entire range.

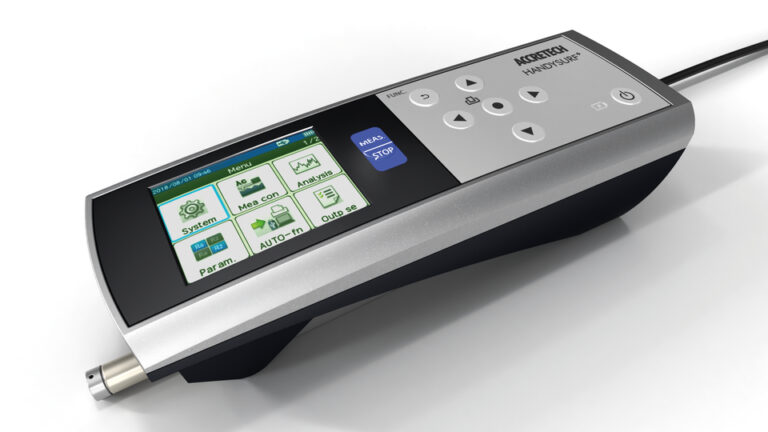

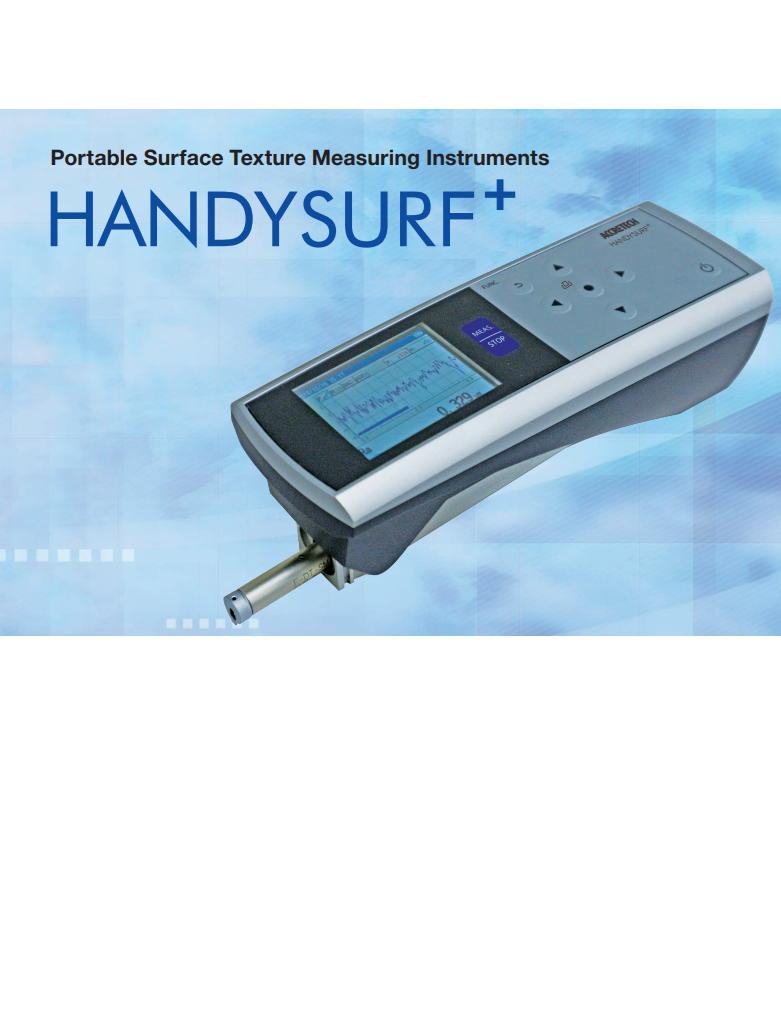

Portable Surface Roughness Tester- Handysurf
Measuring le.gth 0.4mm – 16mm
Cut off length 0.08,0.25,0.8,2.5mm
Ra, Rz, Rsm, Rt, Pt, etc 18 Parameters can be measured.
Can be connected to computer to have graphical representation.
Reasonable price range, easy usage and longer service life add an advantage to the offered range of roughness tester.
Z direction | -210 to +160 μm (370 μm) |
X direction | 16 mm |
Evaluation Length | 0.2 to 16 mm |
Measurement Speed | 0.5, 0.6, 0.75, 1.0 mm/s |
Pickup Sensing type | Differential inductance |
Measurement Method | Skid |
Z direction resolution | 0.0007 μm/-210 to +160 μm |
Measurement force | 4 mN |
Stylus Radius | rtip = 5 μm |
Stylus Angle | 90°cone |
Stylus Material | Diamond |
Calculation Standards | Comply with JIS2013/2001, JIS1994, JIS1982, ISO1997/2009, ISO13565, DIN1990, ASME2002/2009, ASME1995, CNOMO |
Parameter – Profile Curve | Pt, Rmax, Rz, Rk, Rpk, Rvk, Mr1, Mr2, Vo, K, tp |
Parameter – Roughness Curve | Ra, Rq, Rz, Rv, Rc, Rt, RSm, RΔq, Rsk, Rku, Rmr(c), Rmr, Rδc, Rz94, R3z, RΔa, Ry, Sm, S, tp, PC, RPc JIS, RPc ISO, RPc EN, Pc, PPI, Rp, Rmax, Mr1, Mr2, Rpk, Rvk, Rk, Vo, K, A1, A2, Rpm, Δa, Δq, Htp |
Parameter – Motif | R, Rx, AR, W, Wx, AW, Rke, Rpke, Rvke, NCRX, NR, CPM, SR, SAR, Wte, NW, SAW, SW, Mr1e, Mr2e, Vo, K |
Evaluation Curve | Profile Curve, Roughness Curve, ISO13565Special Roughness Curve, Roughness motif curve, Waviness motif curve, Upper envelope waviness curve |
Characteristics graph | Bearing area curve, Amplitude distribution curve |
Filter type | Gaussian, 2RC (phase compensation), 2RC (non-phase compensation) |
Cutoff value – λc | 0.08, 0.25, 0.8, 2.5 mm |
Cutoff value – λs | None, 2.5, 8 μm |
Display | 2.4-inch color liquid crystal panel |
Data output | USB connectors for USB memory/printer connection x 1, Micro USB connector for USB communication x 1 |
Print output | Optional (external printer unit) / Thermal recording paper width: 58 mm (recording width: 48 mm) |
Language | Japanese, English, Chinese (Traditional Chinese/Simplified Chinese), Korean, Thai, Malay, Vietnamese, Indonesian, German, French, Italian, Czech, Polish, Hungarian, Turkish, Swedish, Dutch, Spanish, Portuguese |
Power Supply | AC100 to 240 V ±10%, 50/60 Hz, Single phase (Included AC adapter) |
Power Supply – Charging | Built-in battery (to be charged using AC adaptor, PC USB port, USB battery), charging period: 4 hours (about 1000 measurements can be take when fully charged) |
Power consumption | Maximum 10 W |
External dimensions | Amplification indicator: 184.5 x 68 x 57.4 mm/about 500 g for the entire system |

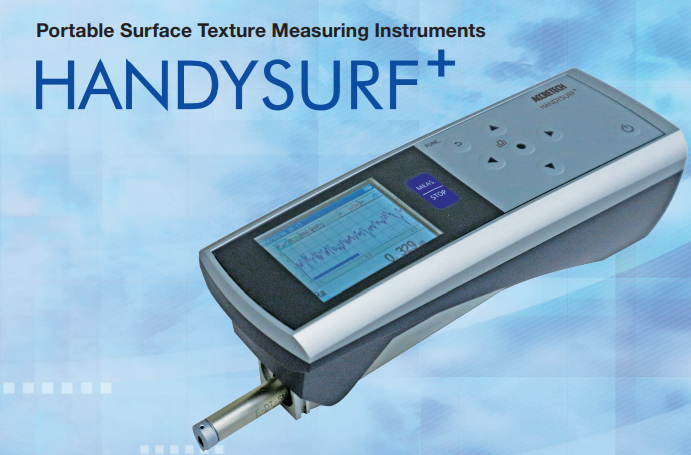

Handysurf High resolution with wide measuring range
No need to set up measuring range
The previous HANDYSURF required setting of a narrow measuring range
when measuring with a high resolution, but HANDYSURF+ does not have
such a requirement.
The instrument has the Z direction measuring range of 370 μm, which is
the widest in class, and achieved a resolution as high as 0.0007 μm over
the entire range

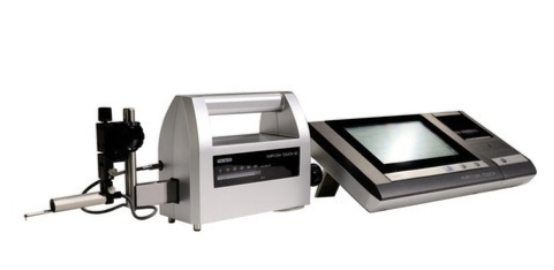

The tabletop surface texture analyzer employs a fine-tipped probe and advanced sensor to scan workpiece profiles, delivering detailed finish evaluation with exceptional clarity and reliability. The diamond-point probe glides steadily across the material under regulated pressure, picking up tiny surface highs and lows. These vertical shifts get recorded by a precise detector and turned into digital data. Built-in processing then evaluates this information to compute texture and wave metrics based on global benchmarks, showing outcomes on a straightforward touch display. It handles both friction-free and guided scanning approaches for varied contours like smooth planes, arcs, or tiered shapes.
Minimum Order Quantity : 1 Unit
Power Supply : Electrical
Product Type : Surface Roughness Tester
Application : Industrial
