The SURFCOM NEX series allows you to select detectors by application. Detectors can be used as a single detector or combined with others to serve as multiple sensors.
Surfcom Nex Series come with three measurement functions; roughness, contour and roughness/contour). These are spontaneously selectable in accordance with users requirements. Adoption of multi-sensor technology enables for the single purpose function by a single detector or the multipurpose functions by merging multiple detectors. The systems allows for flexible structure capability for users requirements, as in usage of detector dedicated to contour or in usage of 3D roughness measuring unit. Surfcom Nex insure highest accuracy in their class. Roughness, contour measurements and analyses in one measuring run improve the measuring efficiency of these. Dual detectors these come with can be retrofit to current linear series.
| Z-Axis Range (Roughness) | Max. 1000 µm; up to 60 mm (Contour) |
| Resolution (Roughness) | 0.1 nm (6.4 µm range); 20 nm (1000 µm) |
| Resolution (Contour) | 0.02–0.04 µm |
| Accuracy (Z-Axis) | ±(1.5 + [2H]/100) µm or better; Rz(0) low noise |
| Straightness (X-Axis) | 0.05 + L/1000 µm |
| Drive System | Low-vibration linear motor |
| Display | 7-inch color touchscreen [prior_context] |
| Sensors/Detectors | Hybrid dual-sensor (roughness/contour); selectable |
| Connectivity | USB/micro USB for data export [prior_context] |
Surfcom Nex come with three measurement functions; roughness, contour and roughness/contour). These are spontaneously selectable in accordance with users requirements. Adoption of multi-sensor technology enables for the single purpose function by a single detector or the multipurpose functions by merging multiple detectors. The systems allows for flexible structure capability for users requirements, as in usage of detector dedicated to contour or in usage of 3D roughness measuring unit. Surfcom Nex insure highest accuracy in their class. Roughness, contour measurements and analyses in one measuring run improve the measuring efficiency of these. Dual detectors these come with can be retrofit to current linear series.
The SURFCOM NEX series supports roughness, contour, and combined roughness/contour evaluations. Users can choose sensors based on specific needs, with options to add more later. For instance, start with a basic roughness sensor for standard checks, then expand to hybrid units for curved surface analysis or dedicated contour detectors for detailed profiles.
This system allows single-sensor use or multi-sensor combinations for hybrid setups. Begin with essential roughness tools and upgrade as requirements grow—such as adding 3D roughness units. Detectors interchange easily, ensuring long-term adaptability without full system replacement.

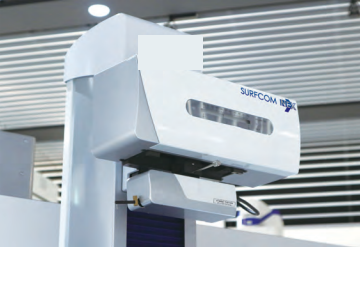

Featuring a pioneering dual-sensor approach, the hybrid detector pairs a precise linear Z-scale for broad-range scans with high-resolution inductance sensing for fine details. This simultaneous operation optimizes accuracy across applications. It’s fully compatible with earlier models for seamless integration.

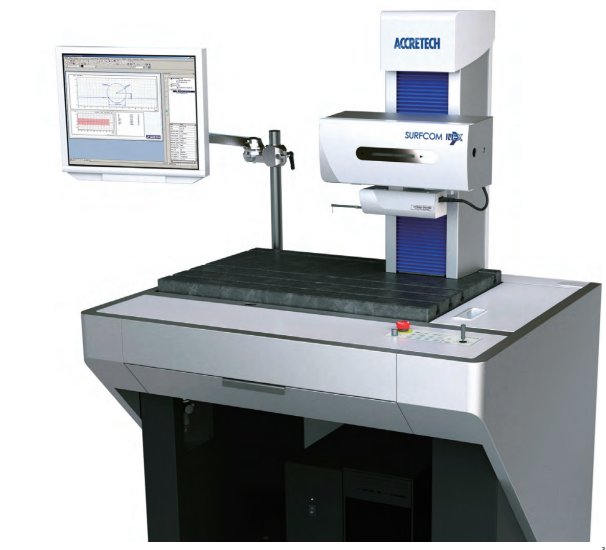

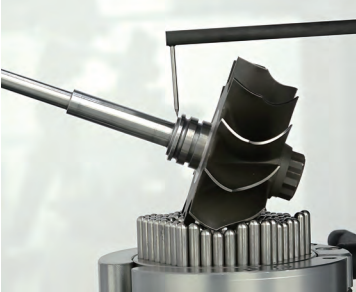

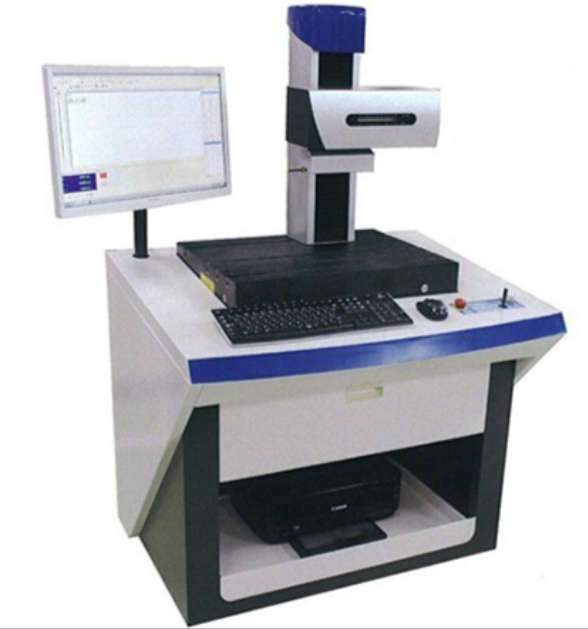

The SURFCOM NEX 040/030 surface measurement system relies on a fine-tipped probe to assess texture, outlines, and shape variations on workpieces. The diamond-point stylus glides over the material, capturing subtle highs, lows, and form irregularities with precision.

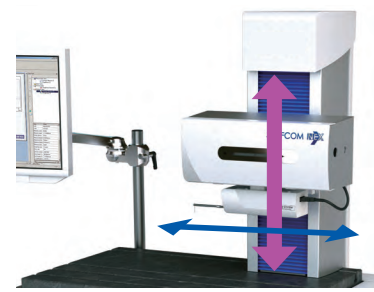

A magnetic linear drive delivers steady, low-vibration travel for reliable data collection. CNC automation options enable hands-free positioning and repeated scans across multiple areas.
Integrated software processes probe signals to compute texture values, profile shapes, and geometric errors, then presents clear visuals on an intuitive display for quality checks and documentation.
Minimum Order Quantity : 1 Unit
Product Type : Contour Measuring Machine
Power Supply : Electrical
Application : Industrial
