Adaptable CNC station for profile tracing. This tool captures detailed 2D outlines of complex shapes with precision. Post-measurement analysis via advanced software refines the data to reveal key dimensions and features.
Auto Element Judgment (AI Function):The 1600D automatically determines the type of element (poin tline circle).
Dimension Display Function
The actual measured values for parameters and geometric deviation can be displayed on the diagram.
Profile Synthesis Function (merging of several different profiles)
The limitations on the analysis range due to the angle of the stylus are addressed with the synthesis function.
Peak and Valley Function
This function enables the maximum workpiece point to be detected by tracing with the stylus, simplifying alignment.
The Contourcord 1600G features an intelligent auto element recognition capability powered by AI, which instantly identifies key geometric shapes like points, lines, and circles during measurement. This streamlines the inspection process by eliminating manual input, ensuring faster and more reliable profile evaluations across diverse workpieces.
Its advanced profile synthesis tool overcomes traditional constraints from probe angles by intelligently combining multiple scan paths into a unified outline. This enables comprehensive analysis of complex surfaces without gaps or distortions, delivering accurate dimensional insights even on challenging geometries.
The Contourecord 1600G surface profiler uses a fine-tipped stylus to scan workpiece outlines and shapes with exceptional detail. As the probe glides across the material, sensitive detectors capture tiny up-and-down or side-to-side shifts in position.
These motions convert to digital data through integrated circuits, which specialized software processes to determine shape elements, profile precision, circularity, and dimensional errors based on global benchmarks.
Precision linear rails combined with optional automated controls deliver consistent, vibration-free travel for dependable results. The touchscreen then shows live readings, visual charts, and analysis summaries, enabling quick and thorough checks of form and contours.

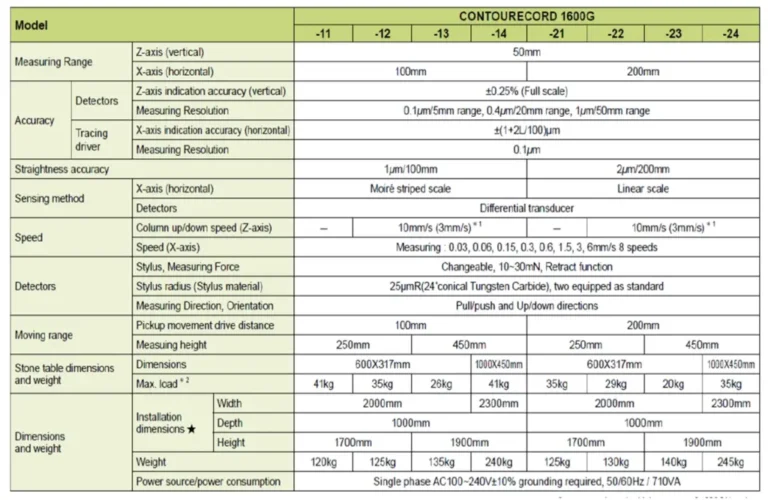

Minimum Order Quantity : 1 Unit
Product Type : Surfcom Nex
Power Supply : Electrical
Application : Industrial
